UVA LED 3535 silica gel Lens Series

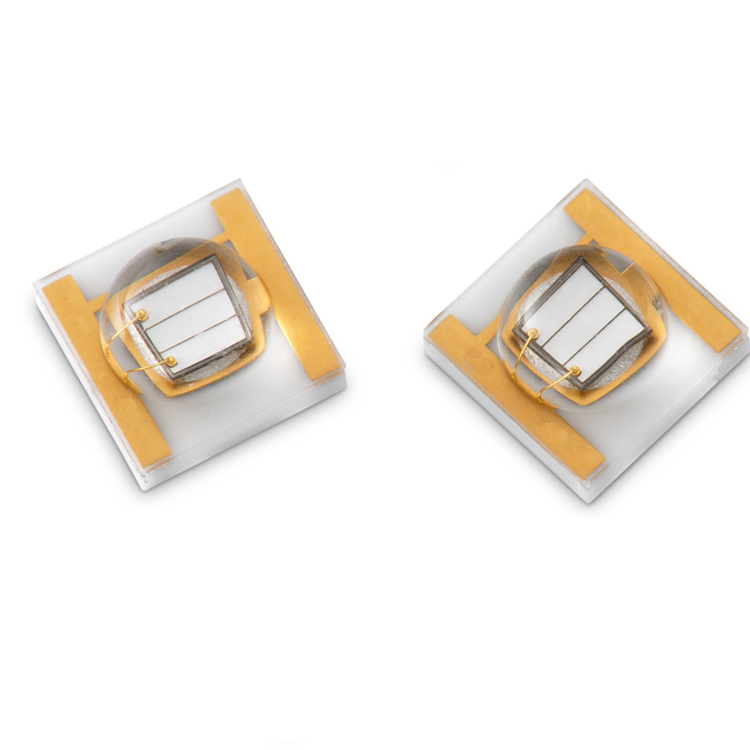

The Yingfeng 3535 surface mount UV LEDs are energy-efficient LEDs that can be driven at high driving current and can dissipate heat efficiently, resulting in better performance and reliability. Their low-profile package design addresses a wide variety of applications where superior robustness and high efficiency are required. They are compatible with the reflow soldering process, and the silicone encapsulation ensures product superiority and longevity.
To facilitate easy pick-and-place assembly, the LEDs are packed in tape and reel. Every reel is shipped in single flux and color bin, to provide close uniformity.
| Specification | Industry standard 3535 package |
|---|---|
| Lifecycle | 30000H |
| Distributor Inventory | Yes |
| Dimension Lxwxh In Mm | 3.45 x 3.45 x 1.95 |
| Package Structure | Ceramic and silicone molding SMD package |
| Test Current (mA) | 1000mA |
| Typical Flux | 1900-2200mW |
| Typical Forward Voltage In V | 3.0-3.4 |
| Typical Peak Wavelength (nm) | 380-390 |
| Viewing Angle (degree) | 120° |
| Environmentally friendly: | REACH, RoHS and Halogen compliant |
UVA Applications
►3D Printing ►Spectrum detection
►MedicalEndoscopyHorticulture ►Machine Vision
►Maskless Lithography ►Scientific Instrumentation
►Photocatalyst purification ►Medical beauty technology
►Spectral analysis ►UV gluing, UV curing, UV marking Currency inspection
►UV drying of printing inks and lacquers ► Detects fluorescing minerals and gems
► Forensic analysis – urine, protein stains ► Leak detection using fluorescent dyes
