Swirled 1000-1750nm LED
UVA LED Diodes have revolutionised industrial applications due to their energy efficiency, durability, high light output and versatility.
In terms of demanding industrial applications, LEDs are widely used where their ability to provide consistent, high quality illumination enhances the accuracy of automated inspection and quality control, such as analysis, detection, inspection & verification, food processing and many, many more processes.

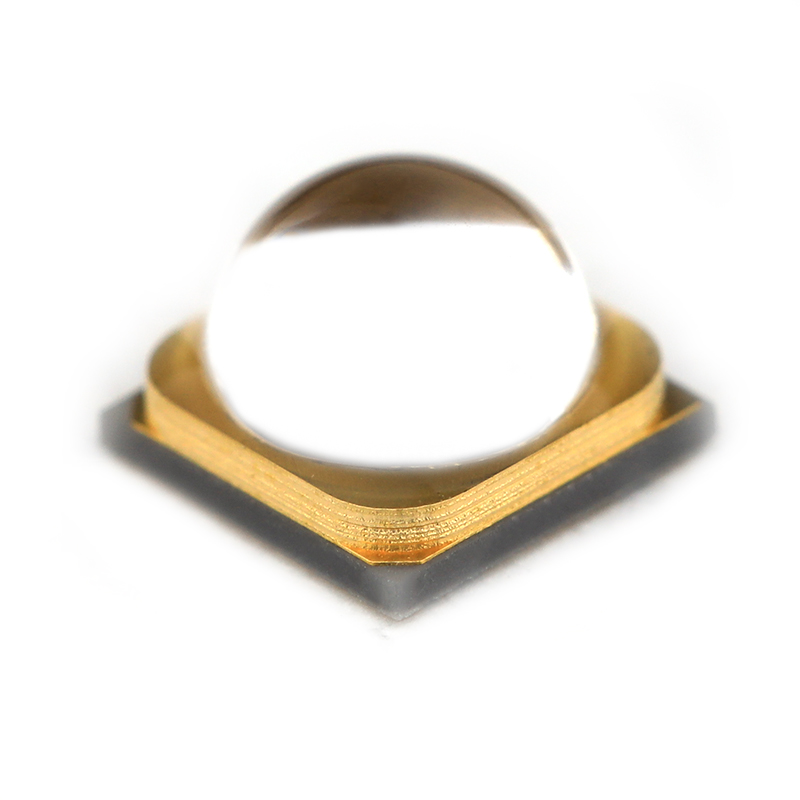

5050 High Power UV LEDs Quartz glass Lens Series
The Yingfeng 5050 Surface Mount UV LEDs are energy-efficient LEDs that can be driven at high driving current and can dissipate heat efficiently, resulting in higher reliability. Their low-profile package design addresses a wide variety of applications where superior robustness and high efficiency are required. They are packaged with ceramic-based materials, and the quartz lens on top of the package provides the product longevity needed for the respective end applications.
The 5050 Surface Mount UV LEDs are compatible with the reflow soldering process. To facilitate easy pick-and-place assembly, the LEDs are packed in tape and reel. Each reel is shipped in single flux and single color bin to ensure close uniformity.
Yingfeng’s LED range covers all wavelengths in the UV, visible and IR spectra from 200nm to 2000 nm. The product portfolio includes multiple models to support all output power ranges from standard to high power. In addition, a variety of packages are available for optimum optical design according to customer requirements, and we can also provide products that combine photosensors with LEDs. In a nutshell: litong offers with its numerous standard wavelengths and the variety of packages with and without integrated lens more than 1500 different configuration options for a required LED.
| Specification | Industry standard 5050 package |
|---|---|
| Lifecycle | 30000H |
| Product Circuit | 2S2P |
| Dimension Lxwxh In Mm | 5.2*5.2*4.0 |
| Package Structure | Ceramic and Quartz lens SMD package |
| Test Current (mA) | 2000mA |
| Typical Flux | 5500-6500mW |
| Typical Forward Voltage In V | 6.0-6.8 |
| Typical Peak Wavelength (nm) | 395-400nm |
| Viewing Angle (degree) | 60° |
| Environmentally friendly: | REACH, RoHS and Halogen compliant |
UVA Applications
►3D Printing ►Spectrum detection
►MedicalEndoscopyHorticulture ►Machine Vision
►Maskless Lithography ►Scientific Instrumentation
►Photocatalyst purification ►Medical beauty technology
►Spectral analysis ►UV gluing, UV curing, UV marking Currency inspection
►UV drying of printing inks and lacquers ► Detects fluorescing minerals and gems
► Forensic analysis – urine, protein stains ► Leak detection using fluorescent dyes
