HYB35H45N1080AG-S1

HYB35H45N1080AG-S1

Price:$7.80

SWIR LEDS FEATURES

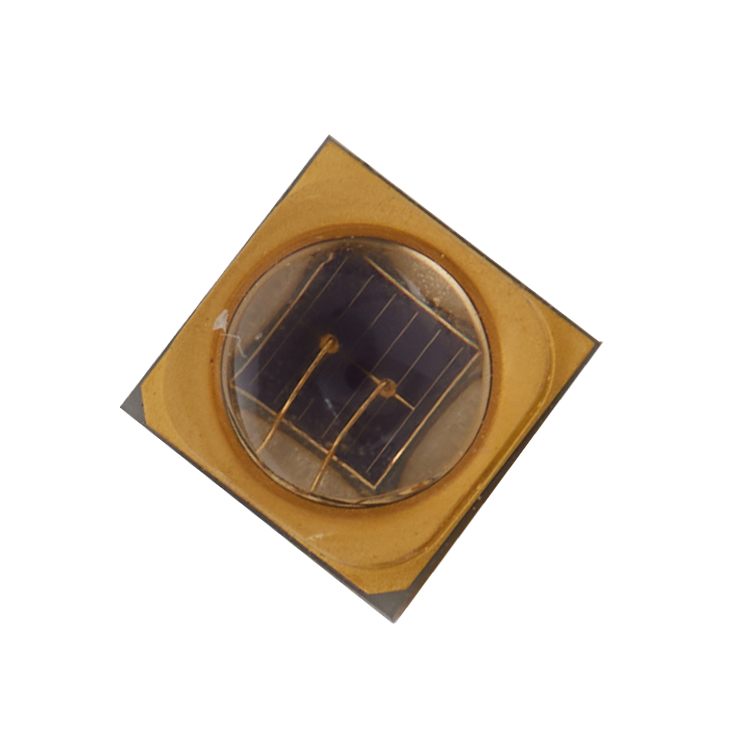

  • The Yingfeng ® 3535 Surface Mount swir LEDs are energy-efficient LEDs that can be driven at high driving current and can dissipate heat efficiently, resulting in higher reliability.  Their low-profile package design addresses a wide variety of applications where superior robustness and high efficiency are required. They are packaged with ceramic-based materials, and the quartz lens  on top of the package provides the product longevity needed for the respective end applications.The 3535  Surface Mount swir LEDs are compatible with the reflow soldering process. To facilitate easy pick-and-place assembly, the LEDs are packed in tape and reel. Each reel is shipped in single flux and single color bin to ensure close uniformity.
  • Ultra-high Watts/cm2 from high current operation maximizes performance in Medical imagingand industrial applications.
  • Medical & industrial grade products with minimal product changes to support multi-year life-cycle of medical instruments.

Yingfeng’s one-stop-shop for short-wavelength infrared (SWIR) LED solutions in the 1000 – 1750 nm range.

Following a long history stretching back over 16 years, we have spent the past few decades bringing together the brightest and best electrical engineers in the world. We pride ourselves in offering first-rate expertise and unparalleled product choice.

Our portfolio brings together hundreds of certified LED construction combinations and the possibility to request your own modifications.

Yingfeng’s entire LED production process is carried out in-house, so we can assure you that the end product will match your specifications exactly. Whether you need a single standard-power chip, or multiple high-power, light-emitting and sensory packages, our customers know that we deliver the optimal result for every inquiry.

In Stock:100000

Add to WishlistRemove from Wishlist
Add to Wishlist
Send InquiryLive Chat

SWIR LEDS APPLICATIONS

Short-wavelength infrared (SWIR) light is useful in applications that rely on the identification of a target substance or material. A key characteristic of this type of light is that target materials, especially organic materials, often have unique transmission (reflectivity) and absorption properties when exposed to SWIR.

By identifying the absorption and transmission wavelengths of your chosen materials,Yingfeng SWIR LEDs and sensors can take your application beyond the restrictions of the visible world.



Biometrics

Liquid Level Inspection

Optical Food Sorting

Road Surface Condition

Silicon Defect Inspection

Solar Simulation

Vital Signs Monitoring



10%

off, especially for you 🎁

Sign up to receive your exclusive discount, and keep up to date on our latest products & offers!

We don’t spam! Read our [link]privacy policy[/link] for more info.

Q1: Are you trading company or manufacturer?

A:We are factory.

Q2 : Do you accept customization?

A:Yes, we can provide you with ODM & OEM Service.

Q3 : How long is your delivery time?

A:Generally it is 3-10 days if the goods are in stock.

Q4. Do you have any MOQ limit for led light order?

A:No! One is also acceptable.

Q5.What is this wavelength？

A:1060-1100nm

Q6. What is the operating voltage ?

A: The operating voltage is 1.2-1.6V.

Q7.What is this angle？

A:30

Q8.What is this packing sizes？

A: 3.5*3.5*3.3mm

Q9.What is this packing Weight？

A:3000PCS 1KG (Reel1000PCS)

    PersonalBusinessDistributor

    + 47 = 48

    Weight 1 kg
    Dimensions 22 × 22 × 4 cm
